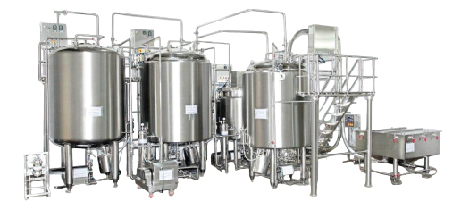

ORAL LIQUID MANUFACTURING PLANT
Manufacturing of syrups, oral liquids, liquid products in pharmaceutical - food, Beverage, Distillery, Ayurvedic industries. Models: from 50- 10,000 Ltrs capacity in fully automatic untouched process or in semi automatic models as per GMP/C-Gmp manufacturing standards with validation documents.
Salient Features:
Three Tank Process: Sugar Melting- Vessel-Manufacturing Vessel - Storage Vessel SS-304/316/316L quality
The tanks can be mounted on legs or lugs as required.
Stirrers/impeller type high speed stirrers, paddle type slow speed stirrer for
low viscous liquids & anchor type stirrer for high viscous liquids
Jacket for steam heating or electrical heating is optionally provided for hot process
Made In SS-304, 316, 316 L In GMP/Non-Gmp Models.
Baffles Provided In Vessel To Reduce Mixing Time And Create Turbulence
Homogenizer For Homogenous Online / Inline Mixing Of Products/Suspensions Bottom Homogenizer/Stirrer Optional.

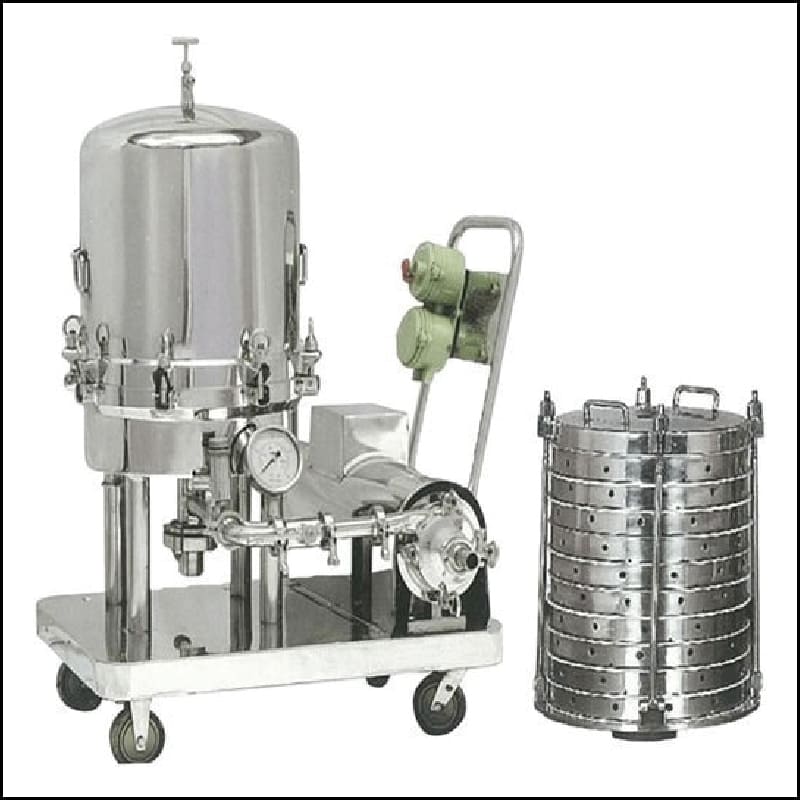

Conical Pre-Filter/Basket Filter, Zero Hold Up Sparkler Filter Press For Final Filter Provided With Unit.
Electroplished Interconnecting Pipeline and TC Fittings for Easy Cleaning & Assembly.
Complete Untouched Process Optional With Auto Transfer Of Products & Ingredients.
Sight Glass On Manhole For In Process Observation
Optional Vacuum Arrangement Provided On Requirement
In Built CIP System For Cleaning And Washing Of Vessels From Inside
Matt Surface Polish Outside And Mirror Polish From Inside
Tank Layout And Dimensions Can Be Designed To Suit The Working Area
Load cell-Level indicators can be integrated with system
Control panel: Standard control panel / Digital control panel is provided with the plant
which includes on/off switches for stirrer, homogenizer, pumps, filter press and thermostatic
controller for electrical heating system. Conveniently fitted within easy reach of operator.
Pic operated control panel system optional.
All dimensions subject to change without prior notice. Specifications/
Description mentioned shown in picture may vary with different models.
Bottle Filling & Sealing Machine

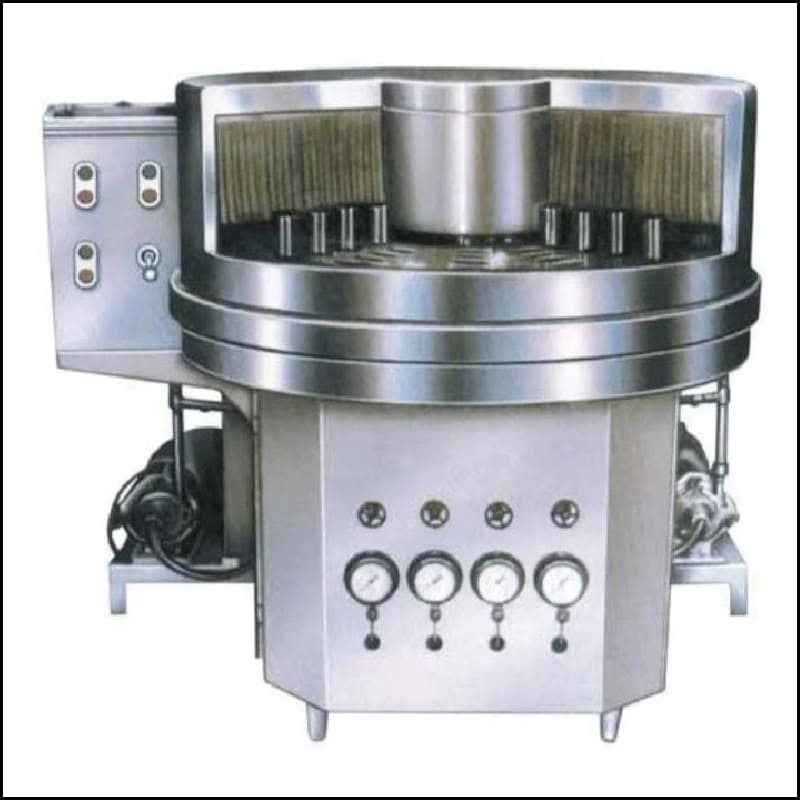

Semi-automatic Rotary Bottle Washing Machine
Rotary Bottle Washing Machine or rotary bottle washer is compact and highly efficient machine with elegant look. Washer available in sturdy and accurate configuration and offer superior functionality in the pharmaceutical, Food & beverage, Cosmetics, Agriculture and Chemical industries. All contact surface of the machine made from SS 304 or other food grade materials. The machine operates on the rotary movement principal with “GENEVA” mechanism. Our bottle washing machines are offered in safe packaging to avoid any damage during the transportation.

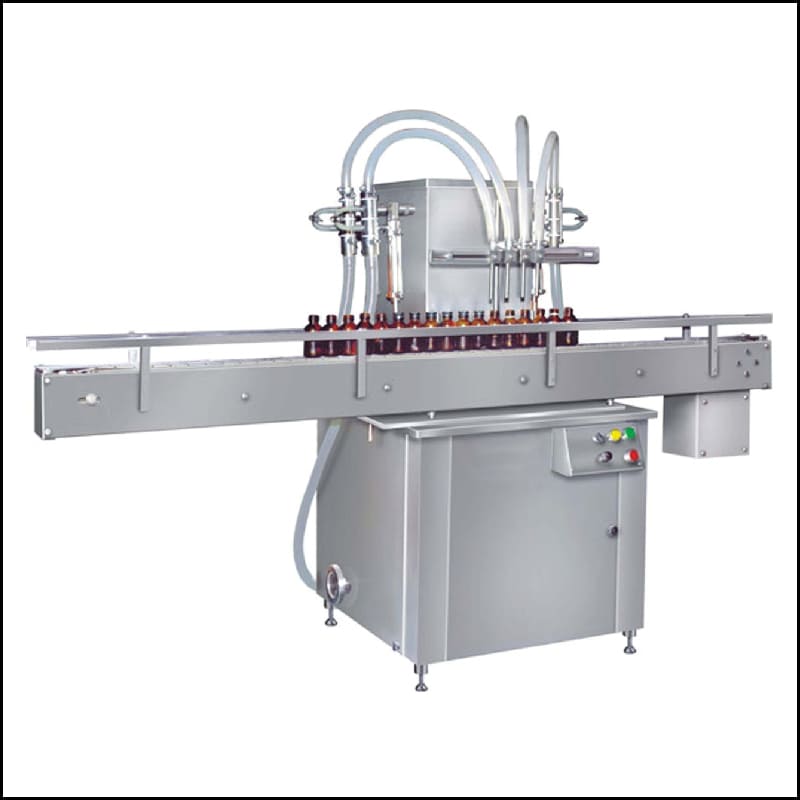

Liquid Filling Machine
The heavy duty, Single head to six head piston or servo type liquid filler for all types of liquids, creams. pastes, gels, etc. containing particulate matter up to 7/8 in diameter. Volumes dispensed can range from 200 to 100ml per cycle, depending on model selected. During a filing cycle, the product piston travels back to draw product from the hopper into a precision machined cylinder, then extends forward to fill. Product is dispensed into the bag or container through a filling nozzle and/pr cutoff device

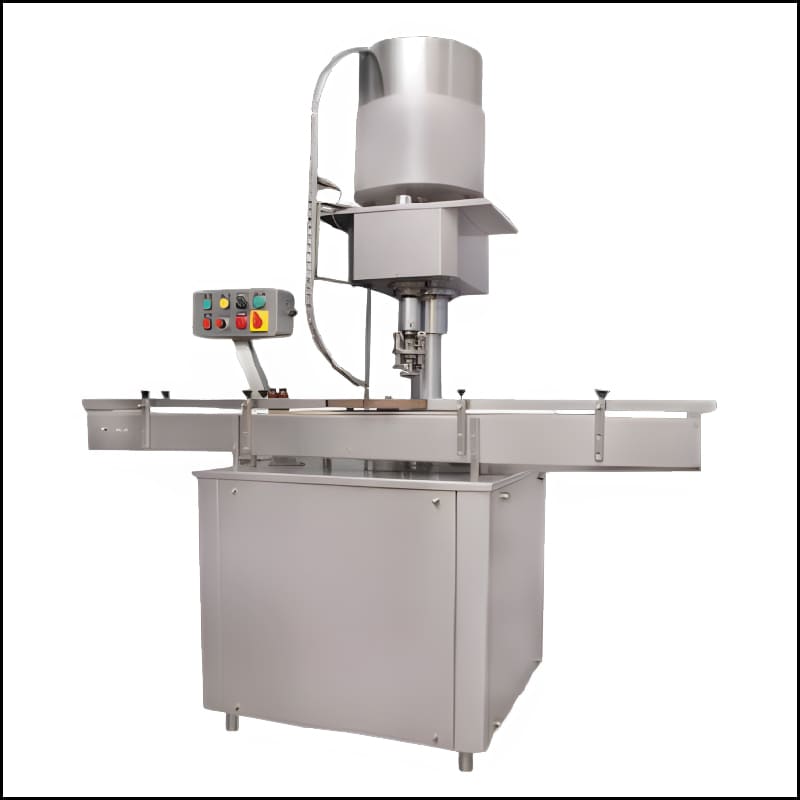

Automatic Single Head ROPP Cap Sealing Machine
Our Machines are widely used in Pharma Syrup, Dry Syrup, Honey, Edible Oil, Lubricant Oil, Hair Oil, Shampoo, Phenol, Fruit Juice, Ready to Drink Juice, Cosmetics, Talcum Powder, Bleach Powder, Herbal Powder, Ayurveda Powder, Wine, Liquor, Electrical Components, Dental Products, Adhesive, Glue, Rubber Adhesive, Stationery, LIP Balm, Petroleum Jelly, Hair Developer, Hair Straightener, Hand Wash, Dish Wash, Hand Sanitizer, Cosmetic Lotion, Hair Wash, etc…

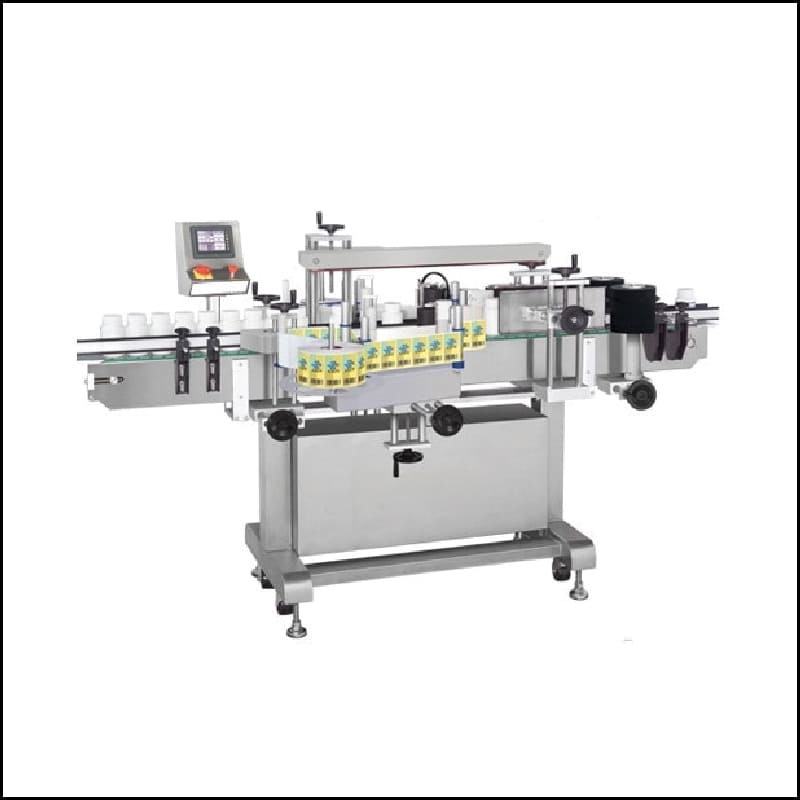

Automatic Vertical Sticker Labelling Machine
Offers Semi automatic Gum Labelling, Semi automatic Sticker Labelling, Automatic Round Bottle Sticker Labelling, Flat Bottle labelling machine & Horizontal Labelling with very high accuracy without cut and overlapping applicator. This model is fully automatic and has a smooth stainless steel finish, with capicities of 10-30 BPM for Semi automatic Gum Labelling, 10-30 BPM Semi automatic Sticker Labelling,20-30 BPM for Automatic Round Bottle Sticker Labelling, & 20-30 BPM for Horizontal Labelling Machine
